The Primary Hazards of Overcurrent

Download Article

When considering the generic application for circuit protection within the confines of appliance or equipment design, there are three significant categories of consideration. They are:

1) Avoidance of hazardous conditions for operating personnel and others indirectly involved.

2) Any reduction in size of current-carrying conductors.

3) Isolating a faulted function—leaving the normally operating functions able to continue.

The safety issue is undoubtedly the most important of these three. The primary safety focus is to eliminate two types of hazards:

1) Electrical shock

2) Smoke and fire

VIEW PRODUCT CATALOG

The safety consideration manifests itself most often in the primary-input circuit protector. In this application, power enters the appliance and is immediately met by a protector that is ready to take the system off-line when required.

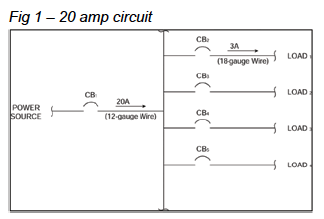

The matter of current reduction is really a traditional definition for circuit protection application. Anywhere there is a reduction in the size of a current-carrying medium; the potential exists for a fault to exceed the limits of that medium. For example, a 12-gauge wire is designed to carry 20 amps, and is protected accordingly. If a branch circuit is taken from this 20-amp circuit utilizing 18-gauge wire (which, depending upon insulation, is rated to carry 3 amps), then a dangerous overload in the 3-amp circuit (say, 15 amps or a 500% overload) would not be noticed by the 20-amp circuit. Figure 1

describe the image

The result is a hazardous condition in the low amp circuits. This situation exists in many electrical outlet situations—when a 14-gauge/15-amp line cord may be plugged into a 12-gauge/20-amp circuit within the building.

The third issue involves the design of faulttolerant equipment and relates to the case illustrated above involving distributed power through branch circuits (Figure 1). If the low-amp branch circuits are independent functions, a fault in one circuit should not take
the whole system down. By inserting a circuit breaker in each of the branches, the fault is isolated to the least-affected circuit, leaving the others to function normally.



Types of Abnormal Conditions In the discussion of circuit protection, it is convenient to separate fault conditions into
two types. They are distinguished by virtue of their magnitude, but also by their cause-andeffect relationship. The two are overload and short circuit.

An overload is a condition where, for various reasons, the current level within an electric circuit exceeds its specified limits
but continues along its designed path. An excellent example is a stalled motor. This situation, at least initially, exceeds the normally specified steady-state condition. Overload will occur at start-up, or if the rotation of the motor is impeded in some way.



This overload will generally be in the area of 300–700% of the rated current level of the device. Start-up conditions are allowed for within most circuit designs. Other extended overload conditions must be protected.



Short circuits, on the other hand, are conditions that occur when the current path to the load is bypassed with a very low
or negligible resistance path. Under this condition, excessively high current flows, which represent a significant hazard both to   the appliance and attendant personnel.



In general, an overload is defined by a magnitude of 200–800% of normal rating, and a short circuit is anything greater than this. Because of its limited impedance/resistance path, however, a short circuit is usually considerably higher than 1000% of normal rating. A short circuit involves circuit damage. An overload may or may not involve circuit damage and many times is easily eliminated without repair, even though sustained overloads result in short circuits over time if not protected.
