Mechanical Products battery disconnect circuit breakers with integrated circuit protection are available from 10 to 150 amps.

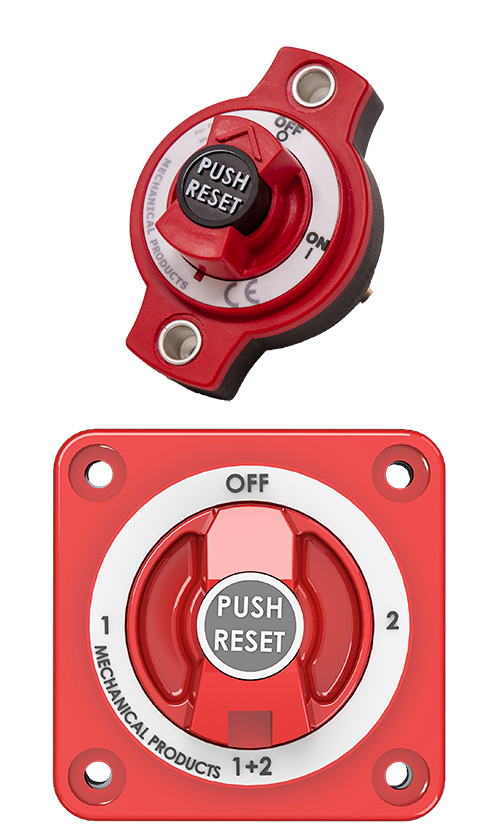

The Series 53 Branch Disconnect is one of the latest innovations designed by Mechanical Products. The unique combination of features in a single rotary switch allows OEM cost savings by eliminating the added components, material and labor of a separate battery switch and circuit breaker /fuse. This branch disconnect with integrated circuit breaker is available from 10 to 70 Amps. Ignition protected and IP67.

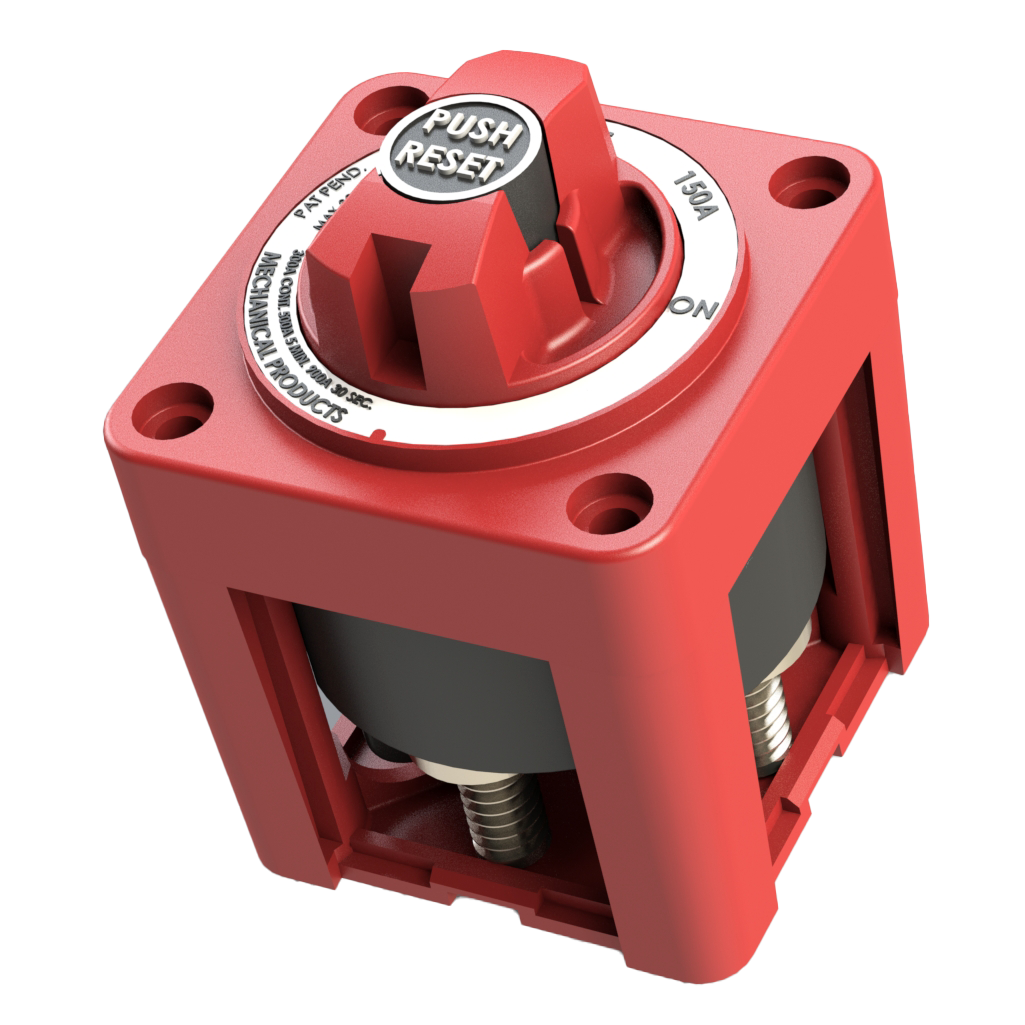

The Series 67 small frame Battery Selector Disconnect Switch with integrated circuit breaker is available from 60 to 150 Amps. (Consult factory for lower amp ratings) This newly developed device offers a manual reset with On-Off function in a panel or surface mount. It fits most industry standard battery switch mounting cutout patterns. Ignition protected and IP66. Currently available for single or dual input. Battery combine option coming in 2024.
