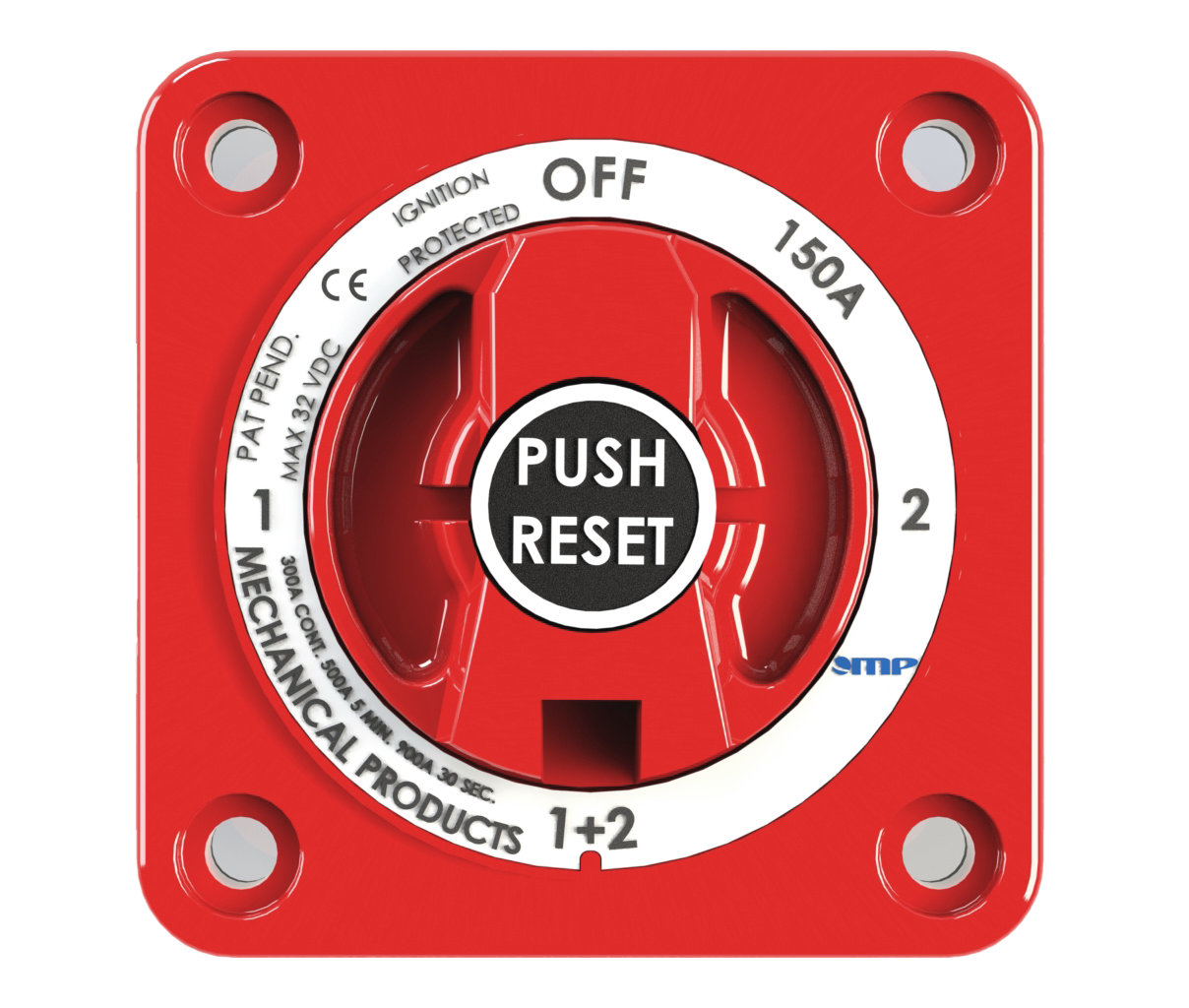

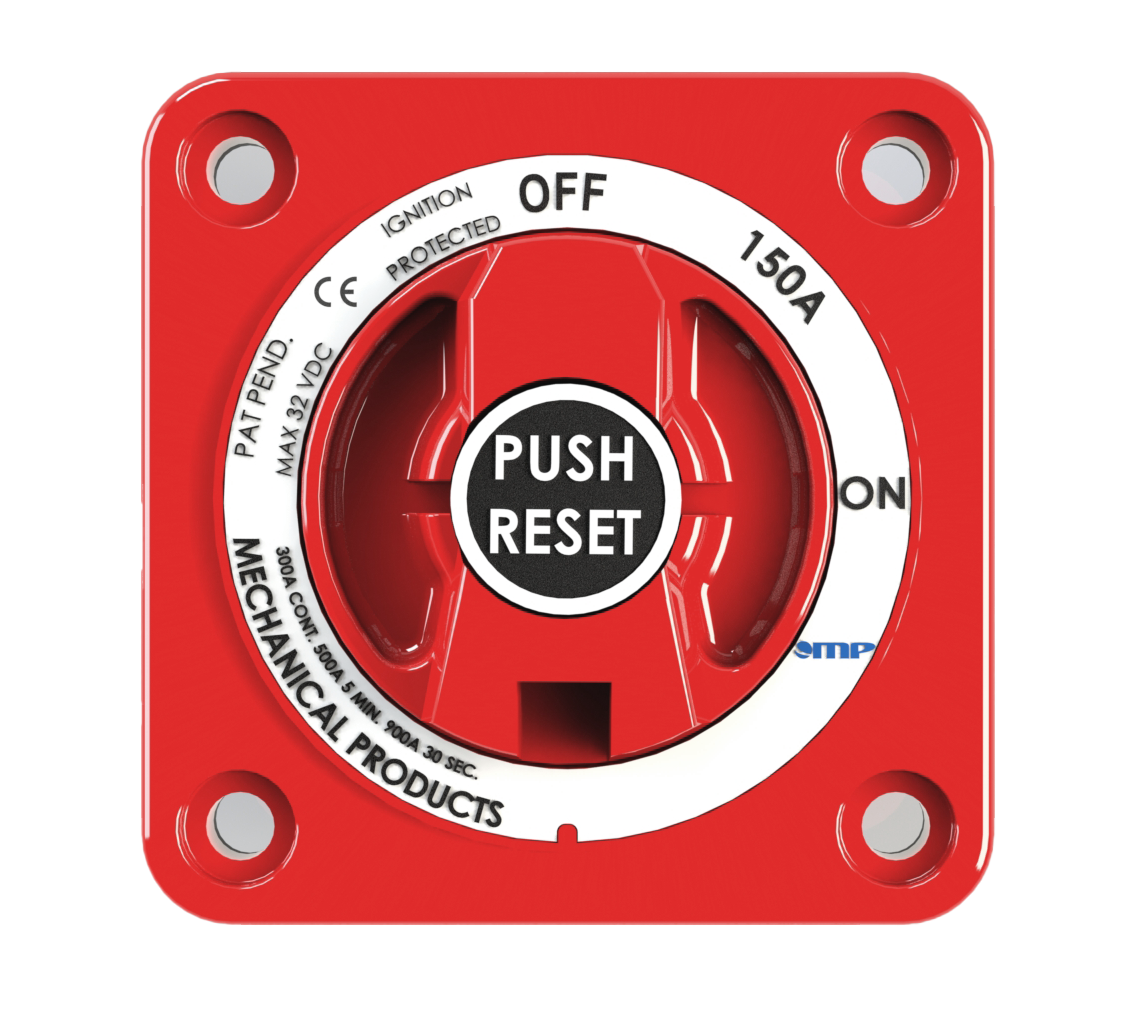

MP Series 67 Battery Disconnect with Integrated Circuit Breaker
Disconnect / Circuit Breaker Rated to 150 Amps
This heavy duty disconnect features a manual reset with On-Off function with separate engine start (or pass thru) and circuit protected main / branch accessory circuit. It is available as a panel mount configuration with an optional surface mount standoff kit. It is ignition protected and IP66 weatherproof. The plated copper studs, which are insert molded, allow for maximum conductivity and corrosion resistance while the 7/8" (22.22mm) stud length accepts multiple cable terminals.
The series 67 Battery Disconnect with integrated circuit breaker was designed to fit most industry standard battery switch mounting cutout patterns.
PRODUCT FEATURES
1
Key Features
Made in the USA
UL1107
32VDC Type III Vehicle Protection
Plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
One-piece terminal stud design never loosens over time
Ignition Protected UL1500
SAE & ABYC Compliant
IP66
2
Ratings
Voltage to- 32VDC
Current- 30-150 Amps
Short Circuit Interrupt to – (see datasheet)
3
Testing Performed
Vibration: 10g force
Shock: 100g force
Corrosion: 96hr salt-spray
Humidity: 240hr at 95% RH
Additional Information on MP Series 67
Data Sheet
Our data sheet includes physical configuration details, operating characteristics, and more.
