MP Series 32
Short Stop Circuit Breaker

MP Series 32
Short Stop Circuit Breaker

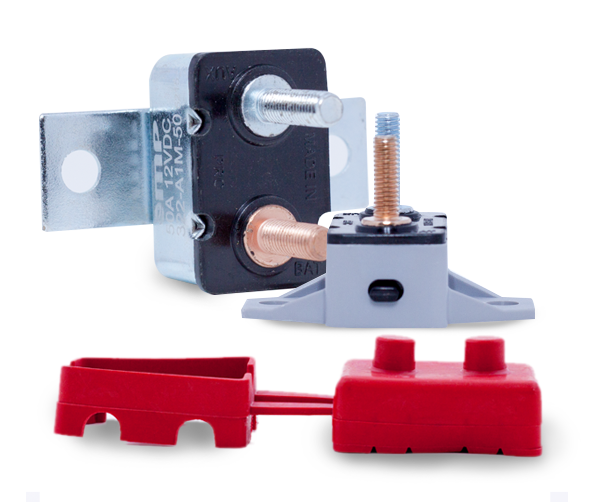

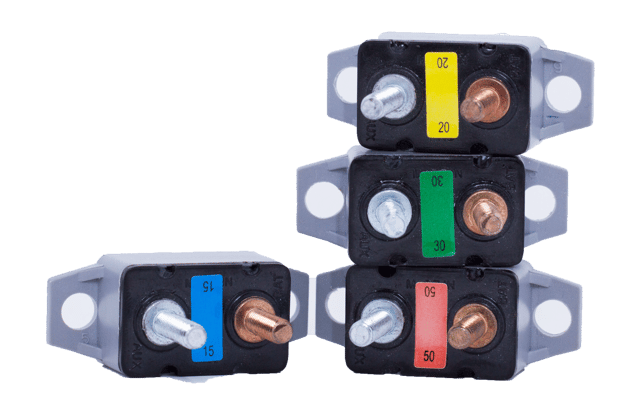

The MP Series 32 is designed as a drop-in replacement for conventional unmounted and bracket mounted versions of Short Stop Circuit Breakers found in applications for Trucks, Busses, RV's, Electric Vehicles and Battery Chargers. The Series 32 Short Stop style circuit breakers offer versions with superior moisture protection. With the optional circuit breaker boot installed, terminals will be protected against inadvertent short circuits.

Product Features
MP-Series32-Features
1

Key Features

  • Type I, II & III
  • Compact Design
  • Single Pole
  • Trip Free Cycling
  • Optional Boot
  • SAE J553 & J1171
2

Ratings

  • Voltage – 14 VDC (Type I & II)/ 28 VDC (Type III)
  • Current – 3-50 Amperes
  • Short Circuit Interrupt – 2,500A @ 12 VDC
3

Testing Performed

  • Corrosion: 96hr salt-spray
  • Humidity: 240hr at 95% RH

Additional Information on MP Series 32

Data-Sheet

Data Sheet

Our data sheet includes physical configuration details, operating characteristics, and more.
RoHS-Tech-Brief

RoHS Technical Brief

The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes.
Samples

Samples

MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes.

Drawings

MP drawings and models are available upon request for design and engineering user.
