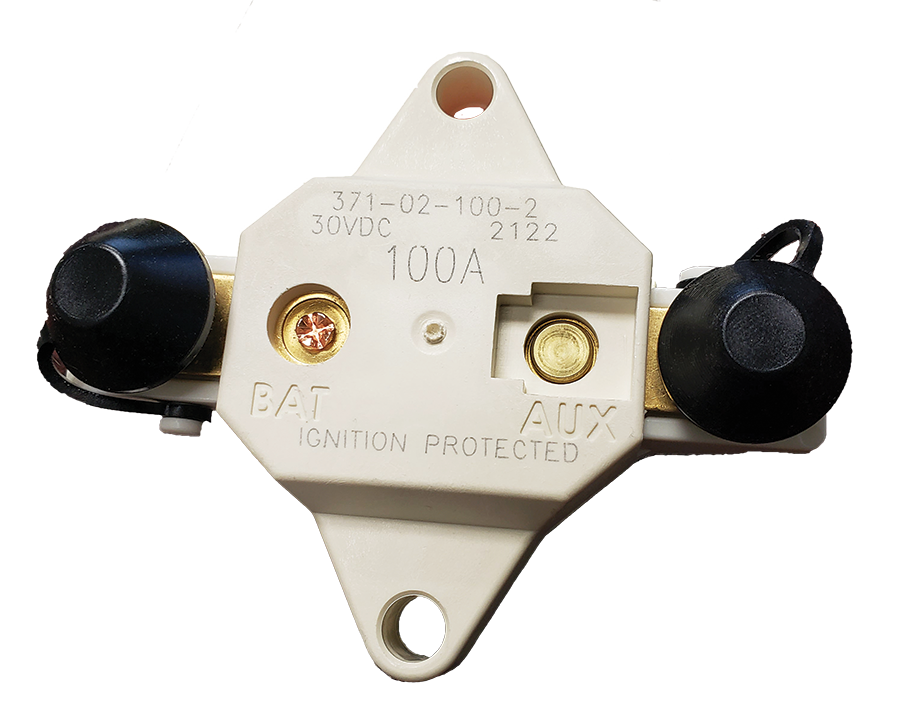

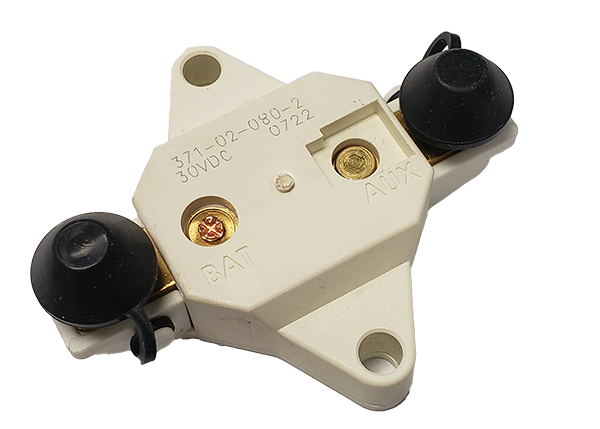

This compact Auto Reset Supplementary Circuit Breaker provides protection for a wide variety of applications from battery chargers to utility trucks. It is an economical alternative to bolt down type I fuses. The Series 37 is available with 1/4"-28 stud terminals, stud caps & cover and is ignition protected.
Type I protection
Economical & Compact
Ideal for battery protection
Alternate for Bolt Down / Bolt on Fuses
Voltage - 30VDC
Current- 50 to 120 Amps
Short Circuit Interrupt - 2,100A @ 14VDC, 1,400A @ 30VDC
