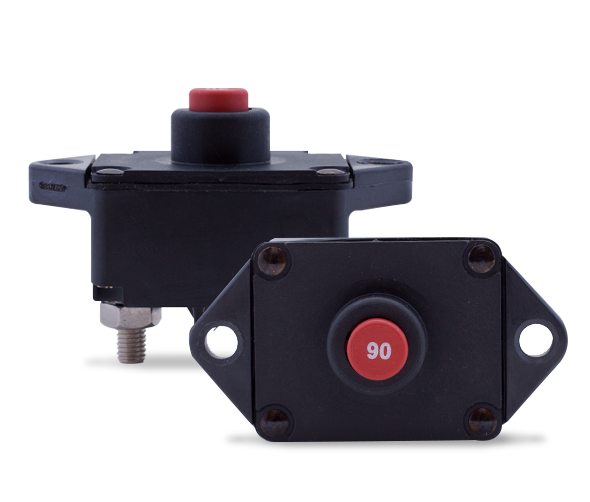

--- title: Series 19 | Mechanical Products description: MP Series 19 Heavy Duty waterproof circuit breaker is compatible existing mounting profiles and has an optional LED tripID™ indicator. Made in USA. --- [Need help?](https://www.mechprod.com/contact) [** 630.953.4100](tel:630.953.4100) [** Email](mailto:helpme@mechprod.com) [![mp-Logo.png](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/mp-Logo.png?width=119&name=mp-Logo.png "mp-Logo.png")](https://www.mechprod.com/) [![mp-Logo](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/sticky-logo.png?width=119&name=sticky-logo.png "mp-Logo")](https://www.mechprod.com/) [** Find a Distributor](https://www.mechprod.com/circuit-breaker-distributors) [**](https://www.mechprod.com/series-19#search-popup) ## Search Mechanical Products Website Search ![MP-Series19-Hero](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Products-Overview_Hero.jpg?width=1440&name=Products-Overview_Hero.jpg "MP-Series19-Hero") # MP Series 19 Heavy Duty Waterproof Circuit Breaker ## Heavy Duty Waterproof Circuit Breaker The Series 19, developed, designed, and manufactured in the USA, is used in accessory or auxiliary direct circuit (DC) electrical systems operating in harsh environments to provide protection in the event of overload and, or short circuit interruptions. The Series 19 is offered in 25 to 200 amps and is designed to meet many regulatory specifications, including IP67 and IP69K water ingress protection. MP’s new LED tripID™ is available in the Series 19 as a vertically integrated visual alert for a tripped circuit condition. MP Series 19 is made in the USA. ![MP-Series19-Intro](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Series19.png?width=590&name=Series19.png "MP-Series19-Intro") Product Features ![MP-Series19-Features](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Series19_200.png?width=590&name=Series19_200.png "MP-Series19-Features") 1 #### Key Features - Made in the USA - Type I & III Vehicle Protection - IP67 & IP69K Waterproof - Ignition Protected - SAE & ABYC Compliant - LED ***trip*IDTM** 2 #### Ratings - Voltage – 30VDC - Current – 25-200 Amperes - Short Circuit Interrupt – (see data sheet) 3 #### Testing Performed - Vibration: 10g force - Shock: 100g force - Corrosion: 96hr salt-spray - Humidity: 240ht at 95% RH - Ingress Protection: IP 69K ### Additional Information on MP Series 19 ![Data-Sheet](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Product_icon1.png?width=53&height=46&name=Product_icon1.png) #### Data Sheet Our data sheet includes physical configuration details, operating characteristics, and more. [Download Data Sheet](https://www.mechprod.com/hubfs/_2017/Data%20Sheets/MP%20Series%2019%20Datasheet%20QC-4009-A.pdf) ![RoHS-Tech-Brief](https://www.mechprod.com/hs-fs/hubfs/_2017/Products/ROHSIcon.png?width=53&height=46&name=ROHSIcon.png) #### RoHS Technical Brief The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes. [RoHS Technical Brief](https://www.mechprod.com/hubfs/_2017/PDFs/ROHS%20Technical%20Brief.pdf) ![Samples](https://www.mechprod.com/hs-fs/hubfs/_2017/Products/SamplesIcon.png?width=53&height=46&name=SamplesIcon.png) #### Samples MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes. [Request Sample](https://www.mechprod.com/request-sample) ![Product_icon1.png](https://www.mechprod.com/hs-fs/hubfs/Drawing-Icon.png?width=53&height=46&name=Drawing-Icon.png) #### Drawings MP drawings and 3D models are available immediately for design and engineering user. Registration required. [Access Drawings](https://mechprod-embedded.partcommunity.com/3d-cad-models/?info=mechanicalproducts/19_series/19_series_asmtab.prj) #### Certifications ![RoHS](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/RoHS.png?width=74&height=75&name=RoHS.png) ![SAE](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/SAE.png?width=74&height=75&name=SAE.png) ![ABYC](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/ABYC.png?width=74&height=75&name=ABYC.png) ![Contact-BG](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/CTA_Strip_Bg.jpg?width=1438&name=CTA_Strip_Bg.jpg "Contact-BG") ![Question-Mark](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/question.png?width=17&name=question.png "Question-Mark") ### Application Assistance, Selection Assistance, Unresolved Issues Need help? One of our sales representatives are here to assist you. [![Contact a MP Sales Representative](https://no-cache.hubspot.com/cta/default/182618/61ea7a71-f6bc-4ee0-9606-b9a73352e7be.png)](https://cta-redirect.hubspot.com/cta/redirect/182618/61ea7a71-f6bc-4ee0-9606-b9a73352e7be) ## Get Updates by Email Receive updates on Mechanical Products and industry news and trends. Visit our sister company [iConn Systems](https://www.iconnsystems.com/) for all your connector needs ![mp-FooterLogo.png](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/mp-FooterLogo.png?width=147&name=mp-FooterLogo.png "mp-FooterLogo.png") - MP Headquarters - 1112 N. Garfield St - Lombard, IL 60148 - [630.953.4100](fax:630.953.4100) [**](https://plus.google.com/+MechanicalProductsLombard?hl=en) [**](https://www.facebook.com/mechanicalproducts/) [**](https://twitter.com/mechproducts?lang=en) [Legal and Privacy Policy](https://www-mechprod-com.sandbox.hs-sites.com/legal-mechanical-products)
