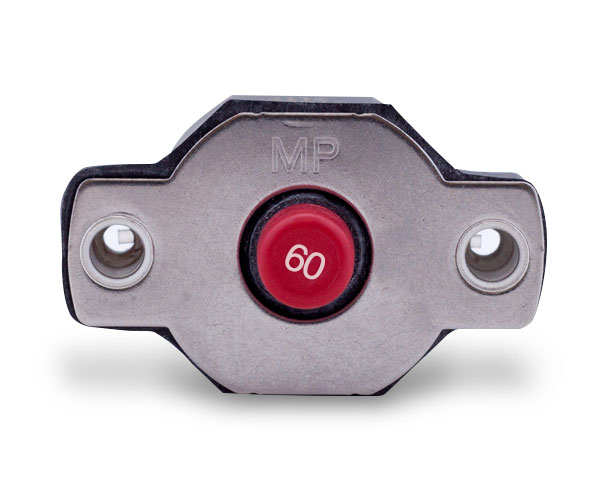

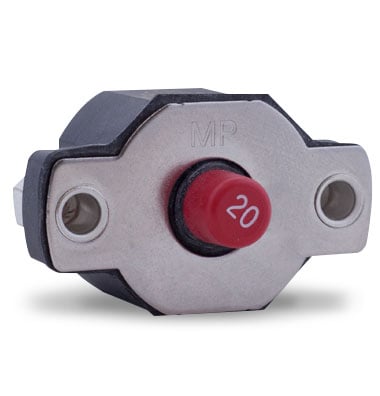

MP Series 18
Push-to-Reset Circuit Breaker

Rugged Weatherproof Circuit Breaker

The weatherproof and ignition protected characteristics are well suited for applications in Marine, Heavy Equipment, Trucks/Busses and Battery Chargers. Available in a wide amperage range, the Series 18 Push-to-Reset Thermal Circuit Breaker is available in both manual and automatic reset configurations. This circuit breaker is designed to be fit and form compatible to previously available devices such as Sensata Klixon and Bussmann, while offering superior performance.

MP-Series18-Intro
Product Features
MP-Series18-Features
1

Key Features

  • Made in the USA
  • Designed for the harshest environments
  • UL1500 rated Push-to-Reset Circuit Breaker
  • Compliances -MIL-STD-202, SAEJ553, ABYC-E11, SAEJ1428, UL1500
  • Trip Free
2

Ratings

  • Voltage - 120VAC/32VDC
  • Current - 2 to 70 Amps
  • Short Circuit Interrupt - 3kA@32VDC/120VAC, 5ka@32VDC, rating dependent
3

Testing Performed

  • Vibration: 10g force
  • Shock: 100g force
  • Corrosion: 96hr salt-spray
  • Humidity: 240ht at 95% RH

Additional Information on MP Series 18

Data-Sheet

Data Sheet

Our data sheet includes physical configuration details, operating characteristics, and more.
RoHS-Tech-Brief

RoHS Technical Brief

The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes.
Samples

Samples

MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes.

Drawings

MP drawings and 3D models are available immediately for design and engineering user. Registration required.

Certifications
