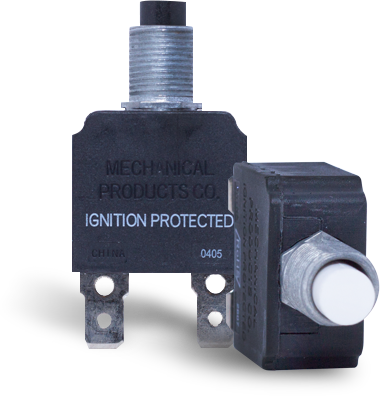

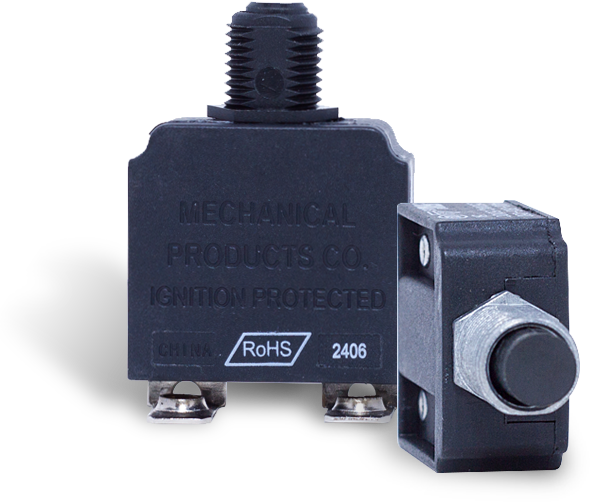

--- title: Series 14 | Mechanical Products description: Mechanical Products series 14 Compact economical Push-to-Reset thermal Circuit Breaker for a variety of applications from medical to household appliances. Marine applications UL1500 Ignition protected & OL1 rated for motor loads Available 3 to 20 Amps. Cross reference Carling CMB series. --- [Need help?](https://www.mechprod.com/contact) [** 630.953.4100](tel:630.953.4100) [** Email](mailto:helpme@mechprod.com) [![mp-Logo.png](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/mp-Logo.png?width=119&name=mp-Logo.png "mp-Logo.png")](https://www.mechprod.com/) [![mp-Logo](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/sticky-logo.png?width=119&name=sticky-logo.png "mp-Logo")](https://www.mechprod.com/) [** Find a Distributor](https://www.mechprod.com/circuit-breaker-distributors) [**](https://www.mechprod.com/series-14#search-popup) ## Search Mechanical Products Website Search ![MP-Series14-Hero](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Products-Overview_Hero.jpg?width=1440&name=Products-Overview_Hero.jpg "MP-Series14-Hero") # MP Series 14 Push-to-Reset Circuit Breaker ## Compact and Robust Push-to-Reset Circuit Breaker This compact, economical, Push-to-Reset Supplementary Circuit Breaker provides protection for a wide variety of applications from medical equipment to household appliance and is available with numerous bushing, terminal and hardware options. The Series 14 Push-to-Reset Thermal Circuit Breaker is qualified for resistive and motor applications. ![MP-Series14-Intro](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Ignition.png?width=380&name=Ignition.png "MP-Series14-Intro") Product Features ![MP-Series14-Features](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Rohs-1.png?width=590&name=Rohs-1.png "MP-Series14-Features") 1 #### Key Features - UL1077 rated Push-to-Reset Circuit Breaker - UL1500 Ignition Protected 2 #### Ratings - Voltage - 250VAC/50VDC - Current - 3 to 20 Amps - Short Circuit Interrupt -1kA@250VAC/50VDC, 3kA@32VDC 3 #### Testing Performed - Vibration: 8g force  - Shock: 30g force  - Corrosion: 96hr salt-spray - Humidity: 240hr at 95% RH ### Additional Information on MP Series 14 ![Data-Sheet](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Product_icon1.png?width=53&height=46&name=Product_icon1.png) #### Data Sheet Our data sheet includes physical configuration details, operating characteristics, and more. [Download Data Sheet](https://www.mechprod.com/hubfs/_2017/Data%20Sheets/MP%20Series%2014%20Datasheet%20Rev%2013R.pdf) ![RoHS-Tech-Brief](https://www.mechprod.com/hs-fs/hubfs/_2017/Products/ROHSIcon.png?width=53&height=46&name=ROHSIcon.png) #### RoHS Technical Brief The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes. [RoHS Technical Brief](https://www.mechprod.com/hubfs/_2017/PDFs/ROHS%20Technical%20Brief.pdf) ![Samples](https://www.mechprod.com/hs-fs/hubfs/_2017/Products/SamplesIcon.png?width=53&height=46&name=SamplesIcon.png) #### Samples MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes. [Request Sample](https://www.mechprod.com/request-sample) ![Product_icon1.png](https://www.mechprod.com/hs-fs/hubfs/Drawing-Icon.png?width=53&height=46&name=Drawing-Icon.png) #### Drawings MP drawings and 3D models are available immediately for design and engineering user. Registration required. [Access Drawings](https://mechprod-embedded.partcommunity.com/3d-cad-models/?info=mechanicalproducts/14_series/14_series.prj) #### Certifications ![UL](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/UL.png?width=74&height=75&name=UL.png) ![CSA](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/SA.png?width=74&height=75&name=SA.png) ![CCC](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/CCC.png?width=74&height=75&name=CCC.png) ![RoHS](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/RoHS.png?width=74&height=75&name=RoHS.png) ![DVE](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/DVE.png?width=74&height=75&name=DVE.png) ![Contact-BG](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/CTA_Strip_Bg.jpg?width=1438&name=CTA_Strip_Bg.jpg "Contact-BG") ![Question-Mark](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/question.png?width=17&name=question.png "Question-Mark") ### Application Assistance, Selection Assistance, Unresolved Issues Need help? One of our sales representatives are here to assist you. [![Contact a MP Sales Representative](https://no-cache.hubspot.com/cta/default/182618/61ea7a71-f6bc-4ee0-9606-b9a73352e7be.png)](https://cta-redirect.hubspot.com/cta/redirect/182618/61ea7a71-f6bc-4ee0-9606-b9a73352e7be) ## Get Updates by Email Receive updates on Mechanical Products and industry news and trends. Visit our sister company [iConn Systems](https://www.iconnsystems.com/) for all your connector needs ![mp-FooterLogo.png](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/mp-FooterLogo.png?width=147&name=mp-FooterLogo.png "mp-FooterLogo.png") - MP Headquarters - 1112 N. Garfield St - Lombard, IL 60148 - [630.953.4100](fax:630.953.4100) [**](https://plus.google.com/+MechanicalProductsLombard?hl=en) [**](https://www.facebook.com/mechanicalproducts/) [**](https://twitter.com/mechproducts?lang=en) [Legal and Privacy Policy](https://www-mechprod-com.sandbox.hs-sites.com/legal-mechanical-products)
