Rugged Environment? Rugged Waterproof Circuit Protection

Series 19 – Rugged type I & III vehicle protection

The Series 19 waterproof thermal circuit breaker is the most rugged circuit protection available for harsh environments. This breaker offers superior ingress protection – IP67 and IP69K rated.

What is IP69K? It is the highest ingress protection available. MP Series 19 is protected against close-range high pressure, high temperature spray downs. The IP69K rating makes this circuit breaker ideal for use in conditions where equipment requires a heavy wash down to remove dust dirt and chemicals.

Series 19 was specifically designed for heavy duty and industrial transportation vehicle manufacturer applications that require a robust harsh environment type of overcurrent protection device.  MP's new LED TripID is available in the Series 19 as a vertically integrated visual alert for a tripped condition.

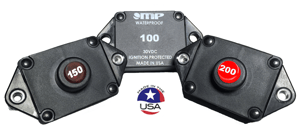

Additional Series 19 Features:Series 19 Waterproof Circuit Breaker

  • Made in the USA
  • Wider Amperage Range: 25 to 200 Amp
  • Smallest available breaker to 200 Amp
  • Designed for harsh applications to 30VDC
  • Recognized per UL1077
  • Type I and Type III manual reset
  • SAE & ABYC Compliant
  • Ignition Protected

Reduce down time by replacing Class T fuses with a circuit breaker. No spare fuses required. Ideal for commercial vehicles, construction heavy equipment, farm and agriculture, mining equipment as well as Marine, RV's, buses and motorcoaches. If it gets dirty Series 19 can handle it!

Get the Datasheet

MP Series 19 is a high quality cross reference alternative for Sensata Klixon SDLA, SDLM or 7855 Series.

To view our other waterproof circuit breakers visit MP Waterproof Circuit Breakers
