MP Series 02

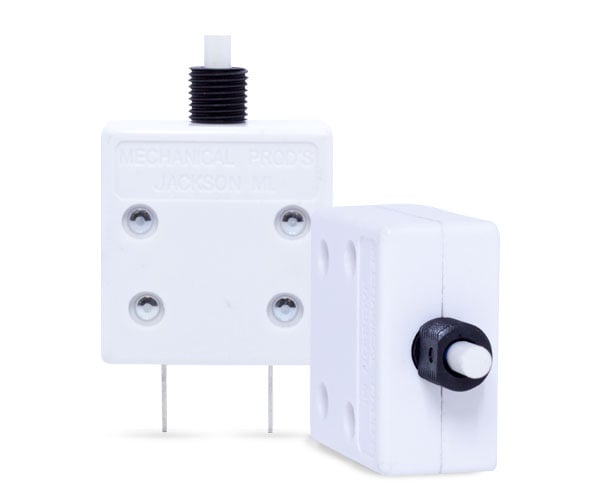

Model 600 & 601 Push-to-Reset Circuit Breaker

High Interrupt in a Small Package

These push-to-reset thermal circuit breakers are used primarily in applications that require a higher degree of voltage protection and require superior current interrupt capabilities. Suitable for branch circuit protection.

MP-Series02-Intro
Product Features
MP-Series02-Features
1

Key Features

  • UL1077 Rated Circuit Breaker
  • Trip Free
  • Cadmium Free Contacts
2

Ratings

  • Voltage - 277VAC/32VDC
  • Current -  Model 600: 4-20Amps, Model 601: 30 Amps
  • Short Circuit Interrupt - 5Ka/277VAC, 1Ka/120VDC
3

Testing Performed

  • Vibration: 8g force
  • Shock: 25g force
  • Corrosion: 96hr salt-spray
  • Humidity: 240hr at 95% RH

Additional Information on MP Series 02

Data-Sheet

Data Sheet

Our data sheet includes physical configuration details, operating characteristics, and more.
RoHS-Tech-Brief

RoHS Technical Brief

The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes.
Samples

Samples

MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes.

Drawings

MP drawings and models are available upon request for design and engineering user.

Certifications

UL
CSA
CCC
RoHS
DVE
