MP Series 17 - 300A
High Amp Thermal Circuit Breaker

Hi Amp Circuit Breaker
Rated to 300 Amps

Available in ratings from 225 to 300 Amps, the 17 Series higher amp offers a robust thermoplastic material case enclosure, designed with superior moisture sealing, in standard surface configuration with 3/8" studs. The MP 17 Series is designed as a drop-in replacement for existing surface and panel mountable configurations in the market today.

For use in critical vehicle applications up to 14VDC (max). Protect lifts, batteries, inverters, motors, pumps, and more.

Product Features

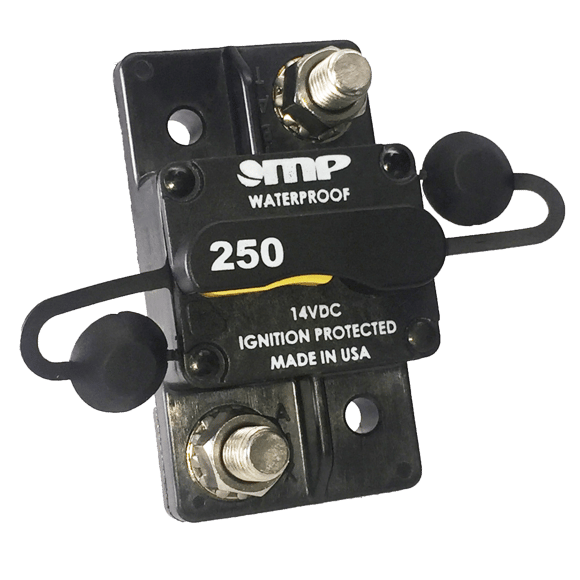

Series 17 174-S2-250A.png
1

Key Features

  • Made in the USA
  • 3/8" Stainless steel terminal studs and sems nuts
  • Dustproof and waterproof
  • Ignition Protected
  • Visible trip indication
  • SAE & ABYC Compliant
  • Rated for 12VDC applications (14VDC max)
2

Ratings

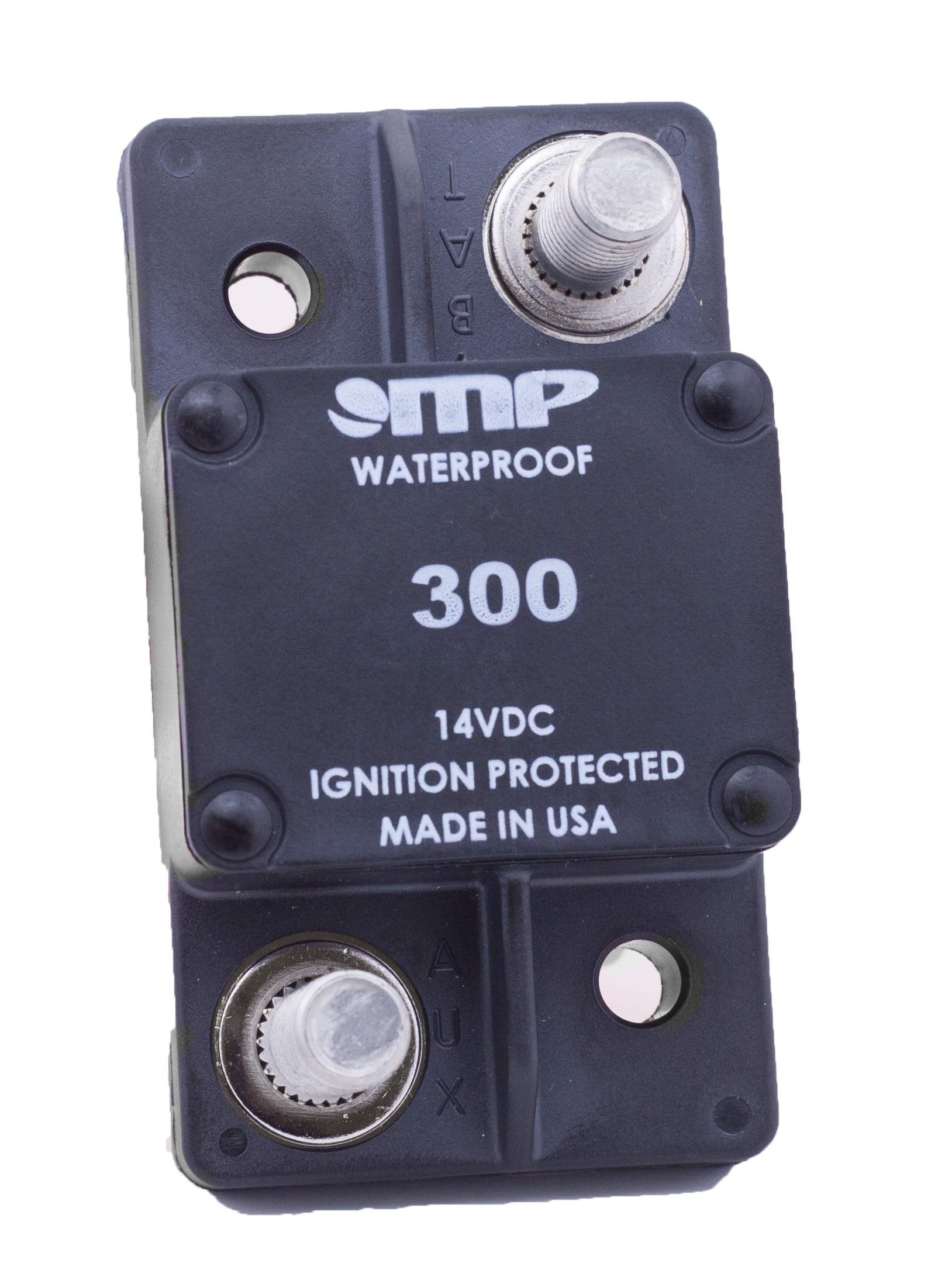

Auto Reset (Series 171-S2-xxx)

  • Amperages: 225A, 250A, 275A, 300A
  • Endurance: 500 cycles, 200% 14VDC per SAE J1625
  • Short Circuit: 2.5kA, 14VDC per SAE J1625



Manual Reset (Series 174-S2-xxx)

  • Amperages: 225A & 250A
  • Endurance: 50 cycles, 200% 14VDC per UL1077 / SAE J1625
  • Short Circuit: 1.5kA, 14VDC per SAE J1625 / 1.5kA, 14VDC ABYC Main Rated
3

Testing Performed

  • Vibration: 8g force
  • Shock: 25g force
  • Corrosion: 96hr salt-spray
  • Humidity: 240hr at 95% RH

Additional Information on MP Series 17 - 300A

Data-Sheet

Data Sheet

Our datasheet includes physical configuration details, operating characteristics, and more.
RoHS-Tech-Brief

RoHS Technical Brief

The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes.
Samples

Samples

MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes.

Drawings

MP drawings and models are available upon request for design and engineering user.

Certifications

RoHS
SAE
ABYC
