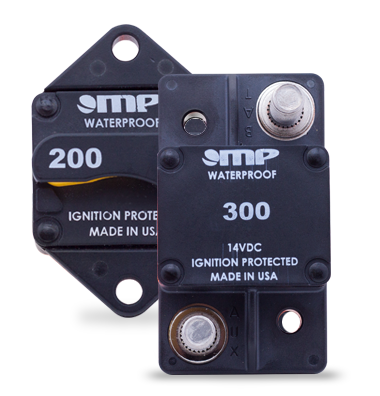

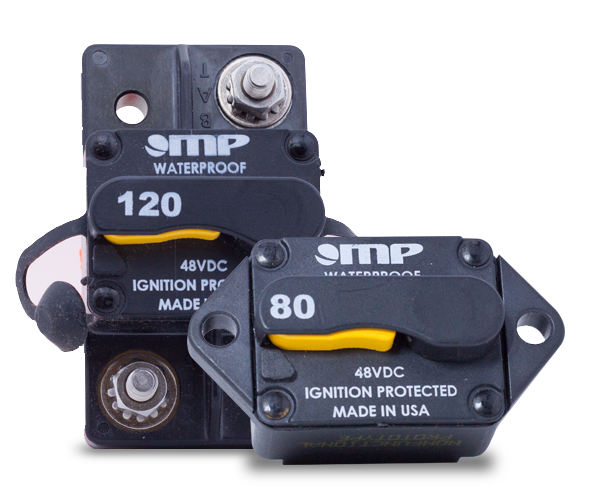

MP Series 17
High Amp Thermal Circuit Breaker

Hi Amp Circuit Breaker
Rated to 300 Amps

Available in ratings from 25 to 300 Amps, the 17 Series offers a robust thermoplastic material case enclosure, designed with superior moisture sealing, in standard surface and panel mount configurations. The MP 17 Series is designed as a drop-in replacement for existing surface and panel mountable configurations in the market today.

New configurations available in Side by Side, Surface, and Easy Access 90° Panel Mount designs. The Easy Access 90° Panel Mount configurations accommodate multiple breaker bus bar installations.

MP-Series17-Intro
Product Features
MP-Series17-Features
1

Key Features

  • Made in the USA
  • Type I & III Vehicle Protection
  • 1/4" and New 3/8" stainless steel terminal studs and sems nuts
  • Dustproof and waterproof
  • Ignition Protected
  • SAE & ABYC Compliant
  • Visible trip indication
2

Ratings

  • Voltage to- 48VDC (25 – 150A), 30VDC (175 – 200A), 14VDC (225-300A)
  • Current- 25-300 Amps
  • Short Circuit Interrupt to – (see datasheet)
3

Testing Performed

  • Vibration: 8g force
  • Shock: 25g force
  • Corrosion: 96hr salt-spray
  • Humidity: 240hr at 95% RH

Additional Information on MP Series 17

Data-Sheet

Data Sheet

Our data sheet includes physical configuration details, operating characteristics, and more.
RoHS-Tech-Brief

RoHS Technical Brief

The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes.
Samples

Samples

MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes.

Drawings

MP drawings and models are available upon request for design and engineering user.

Certifications

RoHS
SAE
ABYC
