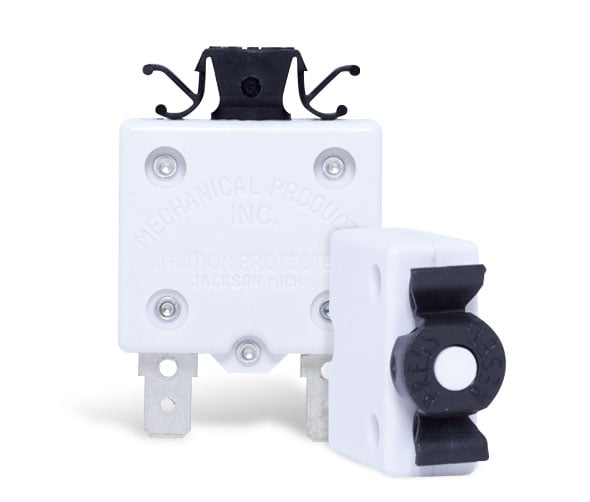

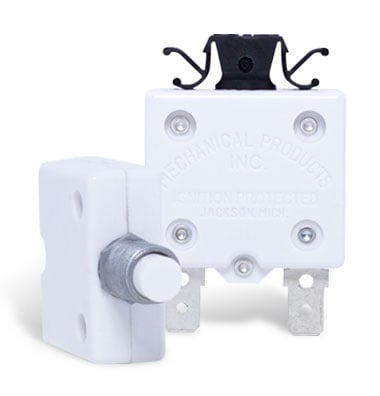

MP Series 16
Push-to-Reset Circuit Breaker

Most Widely Applied
Push-to-Reset Circuit Breaker

The Series 16 is a proven reliable, single-pole thermal circuit breaker with a robust design. This series is suitable for diverse applications such as medical equipment, uninterruptible power systems (UPS), portable generators, welders, industrial cleaning equipment, and transportation.

MP-Series16-Intro
Product Features
MP-Series16-Features
1

Key Features

  • VAC/VDC rated protection
  • Superior current interrupt capabilities
  • Cycling Trip Free
  • UL1500 Ignition Protection
2

Ratings

  • Voltage to- 250VAC/50VDC
  • Current- 0.5 - 70 Amps
  • Short Circuit Interrupt - 1kA@ 250VAC/50VDC, 2kA@120 VAC, 3kA@32VDC
3

Testing Performed

  • Vibration: 8g force
  • Shock: 25g force
  • Corrosion: 96hr salt-spray
  • Humidity: 240hr at 95% RH

Additional Information on MP Series 16

Data-Sheet

Data Sheet

Our data sheet includes physical configuration details, operating characteristics, and more.
RoHS-Tech-Brief

RoHS Technical Brief

The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes.
Samples

Samples

MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes.

Drawings

MP drawings and models are available upon request for design and engineering user.

Certifications

UL
CSA
CCC
RoHS
DVE
