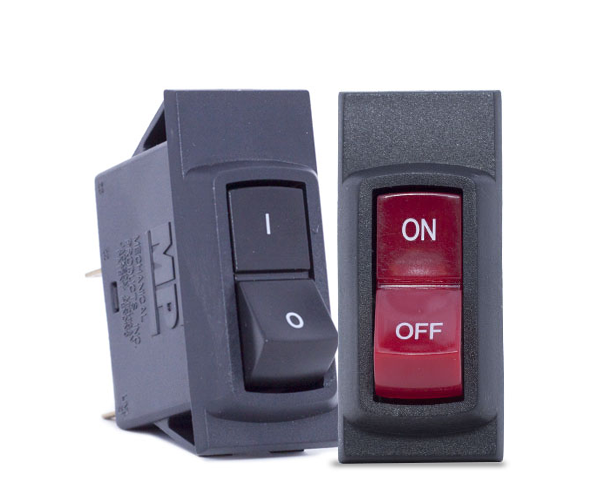

--- title: Series 24 | Mechanical Products description: Mechanical Products UL 1077 series 24 switchable circuit breakers, used in applications that require an “on/off” switch capability. --- [Need help?](https://www.mechprod.com/contact) [** 630.953.4100](tel:630.953.4100) [** Email](mailto:helpme@mechprod.com) [![mp-Logo.png](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/mp-Logo.png?width=119&name=mp-Logo.png "mp-Logo.png")](https://www.mechprod.com/) [![mp-Logo](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/sticky-logo.png?width=119&name=sticky-logo.png "mp-Logo")](https://www.mechprod.com/) [** Find a Distributor](https://www.mechprod.com/circuit-breaker-distributors) [**](https://www.mechprod.com/series-24#search-popup) ## Search Mechanical Products Website Search ![MP-Series24-Hero](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Products-Overview_Hero.jpg?width=1440&name=Products-Overview_Hero.jpg "MP-Series24-Hero") # MP Series 24 Switchable Circuit Breaker ## MP Series 24 UL 1077 Switchable Circuit Breakers The MP Series 24 Thermal Circuit Breaker is used primarily in applications that require an “on/off” circuit breaker switch capability and circuit protection in small enclosures. It is economically designed to provide superior performance at a competitive cost. ![MP-Series24-Intro](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/MPSeries-24bottom.png?width=590&name=MPSeries-24bottom.png "MP-Series24-Intro") Product Features ![MP-Series24-Features](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/MPSeries-24bottom.png?width=590&name=MPSeries-24bottom.png "MP-Series24-Features") 1 #### Key Features - UL1077 Recognized Circuit Breaker - Trip Free - 1 or 2 Pole Switchable Push-to- Reset Circuit Breaker - Snap-in Panel Mount 2 #### Ratings - Voltage- 250VAC/50 VDC - Current- 0.5 to 30 Amps - Short Circuit Interrupt -- 5Ka/250VAC, 1Ka/50VDC 3 #### Testing Performed - Vibration: 8g force  - Shock: 25g force   - Corrosion: 96hr salt-spray - Humidity: 240hr at 95% RH ### Additional Information on MP Series 24 ![Data-Sheet](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/Product_icon1.png?width=53&height=46&name=Product_icon1.png) #### Data Sheet Our data sheet includes physical configuration details, operating characteristics, and more. [Download Data Sheet](https://www.mechprod.com/hubfs/_2017/Data%20Sheets/MP%20Series%2024%20Datasheet%20Rev%2011N2.pdf) ![RoHS-Tech-Brief](https://www.mechprod.com/hs-fs/hubfs/_2017/Products/ROHSIcon.png?width=53&height=46&name=ROHSIcon.png) #### RoHS Technical Brief The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes. [RoHS Technical Brief](https://www.mechprod.com/hubfs/_2017/PDFs/ROHS%20Technical%20Brief.pdf) ![Samples](https://www.mechprod.com/hs-fs/hubfs/_2017/Products/SamplesIcon.png?width=53&height=46&name=SamplesIcon.png) #### Samples MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes. [Request Sample](https://www.mechprod.com/request-sample) ![Product_icon1.png](https://www.mechprod.com/hs-fs/hubfs/Drawing-Icon.png?width=53&height=46&name=Drawing-Icon.png) #### Drawings MP drawings and 3D models are available immediately for design and engineering user. Registration required. [Access Drawings](https://mechprod-embedded.partcommunity.com/3d-cad-models/?info=mechanicalproducts/24_series/24_series_asmtab.prj) #### Certifications ![UL](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/UL.png?width=74&height=75&name=UL.png) ![CSA](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/SA.png?width=74&height=75&name=SA.png) ![CCC](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/CCC.png?width=74&height=75&name=CCC.png) ![RoHS](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/RoHS.png?width=74&height=75&name=RoHS.png) ![DVE](https://www.mechprod.com/hs-fs/hubfs/_2017/Certifications/DVE.png?width=74&height=75&name=DVE.png) ![Contact-BG](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/CTA_Strip_Bg.jpg?width=1438&name=CTA_Strip_Bg.jpg "Contact-BG") ![Question-Mark](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/question.png?width=17&name=question.png "Question-Mark") ### Application Assistance, Selection Assistance, Unresolved Issues Need help? One of our sales representatives are here to assist you. [![Contact a MP Sales Representative](https://no-cache.hubspot.com/cta/default/182618/61ea7a71-f6bc-4ee0-9606-b9a73352e7be.png)](https://cta-redirect.hubspot.com/cta/redirect/182618/61ea7a71-f6bc-4ee0-9606-b9a73352e7be) ## Get Updates by Email Receive updates on Mechanical Products and industry news and trends. Visit our sister company [iConn Systems](https://www.iconnsystems.com/) for all your connector needs ![mp-FooterLogo.png](https://www.mechprod.com/hs-fs/hubfs/MP_2017/Image/mp-FooterLogo.png?width=147&name=mp-FooterLogo.png "mp-FooterLogo.png") - MP Headquarters - 1112 N. Garfield St - Lombard, IL 60148 - [630.953.4100](fax:630.953.4100) [**](https://plus.google.com/+MechanicalProductsLombard?hl=en) [**](https://www.facebook.com/mechanicalproducts/) [**](https://twitter.com/mechproducts?lang=en) [Legal and Privacy Policy](https://www-mechprod-com.sandbox.hs-sites.com/legal-mechanical-products)
