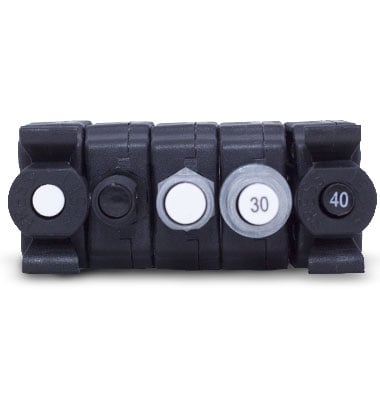

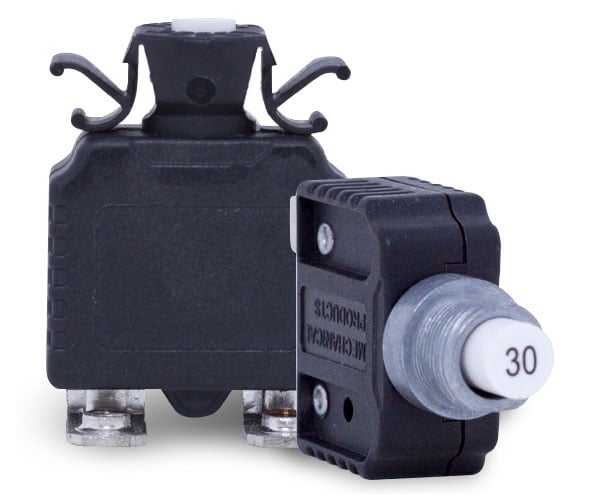

MP Series 15
Push-to-Reset Circuit Breaker

Smallest Package
Rated to 40 Amps

The Series 15 is an economical and compact circuit protector designed for your equipment protection needs in the 3-40A range. The MP Series 15 is suitable for a variety of applications ranging from medical equipment to household appliances to marine applications, with 7 unique termination options and multiple hardware and boot options.

MP-Series15-Intro
Product Features
MP-Series15-Features
1

Key Features

  • UL1077 rated Push-to-Reset Thermal Circuit Breaker
  • UL1500 Ignition Protected
  • Cadmium Free Contacts
2

Ratings

  • Voltage - 250VAC, 50VDC
  • Current - 3 to 40 Amps
  • Short Circuit Interrupt -1kA@250VAC/50VDC, 2.5kA@32VDC
3

Testing Performed

  • Vibration: 8g force
  • Shock: 30g force
  • Corrosion: 98hr salt-spray

Additional Information on MP Series 15

Data-Sheet

Data Sheet

Our data sheet includes physical configuration details, operating characteristics, and more.
RoHS-Tech-Brief

RoHS Technical Brief

The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes.
Samples

Samples

MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes.

Drawings

MP drawings and models are available upon request for design and engineering user.

Certifications

UL
CSA
CCC
RoHS
DVE
