MP Series 07

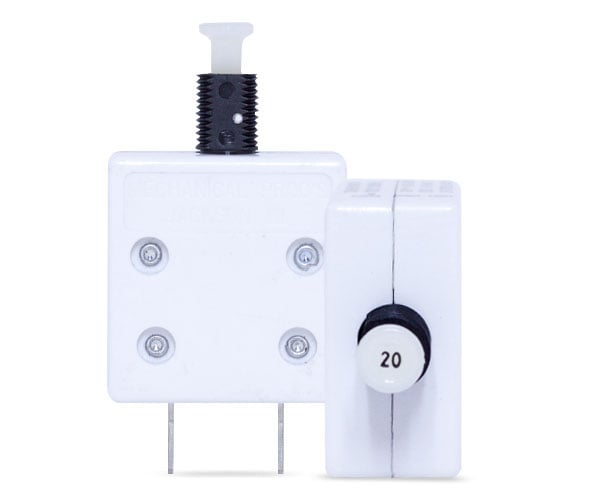

Model 752 Switchable Circuit Breaker

MP Series 07
UL 489 Switchable Circuit Breakers

The small model 752 thermal circuit breaker is used primarily in applications that require typical AC 120V protection, and require superior current interrupt capabilities. Suitable for branch circuit protection.

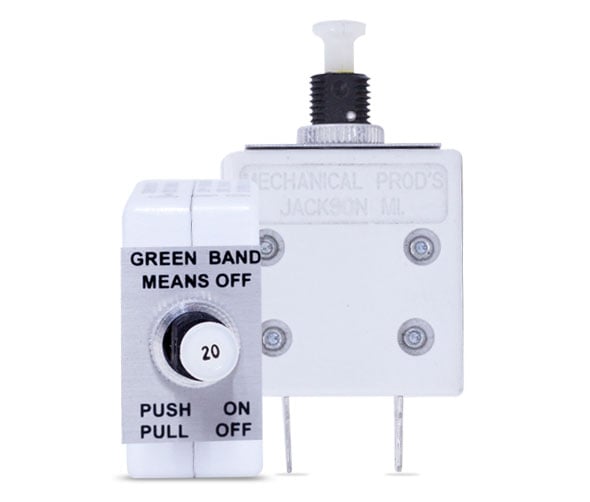

A simple “push-pull” switching device allows the user to disconnect the entire system, while at the same time providing automatic disconnect in the presence of over current conditions.

MP-Series07-Intro
Product Features
MP-Series07-Features
1

Key Features

  • UL489 Listed Circuit Breaker
  • Trip Free
  • High Current Interrupt Capability
  • Color Band for Clear Indication of a Disconnected State
  • Cadmium Free Contacts
2

Ratings

  • Voltage- 120VAC
  • Current- 15-20 Amps
  • Short Circuit Interrupt -  5Ka@120VAC
3

Testing Performed

  • Vibration: 8g force
  • Shock: 25g force
  • Corrosion: 96hr salt-spray
  • Humidity: 240hr at 95% RH

Additional Information on MP Series 07

Data-Sheet

Data Sheet

Our datasheet includes physical configuration details, operating characteristics, and more.

RoHS-Tech-Brief

RoHS Technical Brief

The RoHS technical brief is Mechanical Products’ (MP) policy to avoid the use of hazardous materials in our processes.

Samples

Samples

MP samples are available to manufacturers for new designs, prototype builds, product improvements and testing purposes.

Request a Drawing

Drawings

MP drawings and models are available upon request for design and engineering user.
